Laser Etching on Metal: Complete Precision Marking Guide

Understanding The Science Behind Laser Etching On Metal

Laser etching on metal represents a significant advancement in manufacturing. This process uses a focused laser beam to create precise, permanent marks on various metal surfaces. This precision stems from the interaction between different laser wavelengths and the metal substrate. Understanding this interaction is crucial for choosing the best approach for any given project.

How Laser Etching Works

The science behind laser etching hinges on the principle of photoablation. The laser beam delivers intense energy to a pinpointed area on the metal’s surface. The metal absorbs this energy, leading to rapid heating and vaporization of the material.

Imagine focusing sunlight through a magnifying glass onto a leaf. The concentrated light creates enough heat to burn the leaf. Similarly, the laser beam removes tiny amounts of metal, creating the desired etch. This controlled removal allows for intricate designs, text, and even barcodes to be etched with remarkable accuracy.

The Role of Fiber Lasers

Fiber lasers have become the preferred technology for laser etching on metal. They offer a unique blend of high power, excellent beam quality, and wavelength stability.

Moreover, fiber lasers are compact and require less maintenance than other laser types. This makes them a practical choice for a wide range of industrial environments.

Beam Quality and Depth Control

The laser beam's quality significantly affects the final etch. A high-quality beam, distinguished by its Gaussian profile, produces a clean, sharply defined mark. The energy within the beam is concentrated in the center, resulting in precise material removal.

Controlling the laser’s power, frequency, and speed dictates the etch's depth and overall appearance. Consistent depth control is essential for applications needing specific dimensional tolerances, such as those in the aerospace industry. You can learn more about this process here: How to master laser marking on metal.

Thermal Effects and Material Removal

The laser beam's thermal effects on the metal are fundamental to the etching process. Rapid heating and cooling can create a heat-affected zone (HAZ) around the etch. Managing this HAZ is crucial, especially for metals susceptible to distortion or discoloration.

For example, stainless steel necessitates careful parameter control to prevent unwanted heat discoloration. Laser etching also stands to benefit from progress in the larger laser processing market. This market is expected to reach USD 11.0 billion by 2029, expanding at a CAGR of 10.1%. This growth is driven by advancements in medical device marking and nanotechnology production. Explore this topic further. Ongoing developments in laser technology promise to further refine the efficiency and capabilities of laser etching, particularly within various manufacturing sectors.

Choosing Equipment That Actually Delivers Results

Investing in the right laser etching equipment is crucial for achieving professional results on metal. Beyond marketing hype, what truly matters is the system's capabilities and how well they align with your specific needs. This means considering factors like power density, beam quality, software features, and even the type of focusing optics used.

Laser Sources: The Heart of the Operation

Fiber lasers have become the industry standard for metal etching due to their wavelength and power output. Their shorter wavelength compared to CO2 lasers allows them to be easily absorbed by most metals, resulting in cleaner and faster etching. Fiber lasers also produce a high-quality beam, often exhibiting a desirable Gaussian profile which concentrates energy for precise material removal.

Galvo vs. Gantry Systems: Speed and Precision

When choosing between galvo and gantry systems, consider your workload and the types of items you'll be etching. Galvo systems utilize rapidly oscillating mirrors and excel at high-speed marking and intricate designs, particularly on smaller workpieces. Gantry systems, where the laser head moves across the material, are better suited for larger items and deeper engravings, but typically operate at slower speeds. Choosing the right system can significantly impact production efficiency, especially for high-volume operations.

Power Density and Beam Quality: The Keys to Clean Marks

Power density, the concentration of power at the laser beam's focal point, is essential for achieving clean, defined etches. Higher power density allows for faster etching speeds and deeper marks. Beam quality also plays a crucial role, determining the sharpness and precision of etched lines. A beam with a clean Gaussian profile minimizes heat diffusion and ensures consistent results, especially when etching fine details.

Assist Gases: Enhancing the Etching Process

Using assist gases like nitrogen or oxygen can significantly improve the laser etching process. These gases help prevent oxidation and discoloration, particularly on reactive metals. They also improve material removal rates and create cleaner edges by removing debris generated during etching.

Software and Control Systems: Precision at Your Fingertips

Control software plays a vital role in consistent and repeatable results. User-friendly software with advanced features like parameter optimization and automated focusing simplifies setup and operation. Features such as real-time power control and pulse shaping allow for fine-tuning the etching process to achieve the desired depth and contrast.

Maintenance and Reliability: Keeping Your System Running Smoothly

Choosing a reliable system minimizes downtime and maximizes your return on investment. Regular maintenance, including cleaning the optics and ensuring proper alignment, is crucial for consistent performance. Consider the availability of technical support and replacement parts when making your decision. This is particularly important in high-volume production environments where delays can significantly impact output. The U.S. market for laser cutting machines, which often include laser etching capabilities, was estimated at USD 1.32 billion in 2023 and is projected to grow at a CAGR of 5.9% from 2024 to 2030. This growth is partly fueled by the increasing adoption of technologies like the Internet of Things (IoT) and automation. For more detailed market statistics, see: Learn more about laser cutting machine market statistics. Choosing the right laser etching equipment, based on your specific production requirements, ensures optimal performance and supports business growth.

Mastering Different Metal Substrates And Their Quirks

Laser etching on metal offers incredible precision. However, each metal has unique characteristics that influence the final result. Understanding these "quirks" is crucial for achieving the quality and speed your projects demand. This involves carefully considering properties like thermal conductivity, surface finish, and alloy composition.

To illustrate the importance of these factors, let's explore how they affect several common metals used in laser etching.

Thermal Conductivity: Managing the Heat

Thermal conductivity plays a significant role in how metal reacts to the laser's heat. Highly conductive metals, like aluminum, dissipate heat quickly. This can require higher laser power or slower speeds to achieve the desired etch depth. Conversely, metals with lower conductivity, such as stainless steel, retain heat longer, making them more susceptible to heat-affected zones (HAZ) and discoloration. Check out our guide on laser rust removal for more insights into dealing with metal oxidation.

Surface Finish: A Smooth Starting Point

The initial surface finish of the metal significantly impacts the etching process. A rough surface can scatter the laser beam, leading to uneven etching and reduced contrast. For optimal results, a smooth, polished surface is often preferred, allowing for cleaner, more precise marks. This is especially important for applications requiring fine detail or high contrast.

Alloy Composition: Tailoring the Approach

Different alloy compositions within the same metal family can also influence laser etching results. For example, certain titanium alloys require specific laser parameters to achieve consistent depth and prevent unwanted oxidation. The zinc content in brass can affect how the material responds to the laser, impacting both the etching speed and the final appearance.

To summarize the optimal laser parameters for different metals, the following table provides a useful comparison:

To understand how these factors interplay when laser etching various metals, the table below offers a comparison of optimal settings and key considerations.

Metal Type	Power Setting	Speed (mm/min)	Frequency	Expected Depth	Key Considerations
Stainless Steel	Moderate	Moderate	High	Shallow to Medium	Balance power and speed to minimize HAZ and discoloration.
Aluminum	High	Slow	High	Medium to Deep	Use high power and slow speeds to counteract reflectivity.
Titanium	Moderate	Slow	Moderate	Shallow to Medium	Precise control is crucial to prevent oxidation and maintain integrity.
Copper	Moderate	Moderate	High	Shallow to Medium	Careful parameter control is needed for fine detail and to prevent oxidation.
Brass	Moderate	Moderate	High	Shallow to Medium	Zinc content influences etching speed and final appearance.

The table above highlights the importance of adjusting laser settings based on the specific metal being etched. While some metals, like aluminum, require high power and slow speeds, others, like stainless steel, necessitate a more balanced approach.

The infographic above illustrates the benefits of precise parameter control when laser etching various metals. Achieving the desired outcome depends heavily on understanding the interplay between the laser and the metal's unique properties.

Stainless Steel: Balancing Speed and Appearance

Stainless steel is popular for laser etching due to its corrosion resistance. However, its lower thermal conductivity makes it prone to discoloration if laser parameters aren't carefully managed. Finding the right balance between laser power and speed is essential for a clean, dark etch without heat marks.

Aluminum: Overcoming Reflectivity

Aluminum's high reflectivity can be challenging for laser etching, causing the laser beam to scatter and reducing energy absorption. Specific laser wavelengths and power settings are crucial for efficient material removal and clean marking.

Titanium: Precision and Biocompatibility

Titanium's strength and biocompatibility make it ideal for medical and aerospace applications. Laser etching on titanium requires precision to achieve consistent depth without compromising material integrity. Controlling the laser's pulse frequency and energy is critical for precise marks without unwanted heat build-up.

Copper and Brass: Achieving Fine Detail

Copper and brass, known for their aesthetic appeal, are often used for decorative laser etching. Achieving fine detail requires a precise laser beam and careful parameter control. This is especially important for intricate designs and sharp text. Proper surface preparation and post-processing are essential for the desired finish and to prevent oxidation.

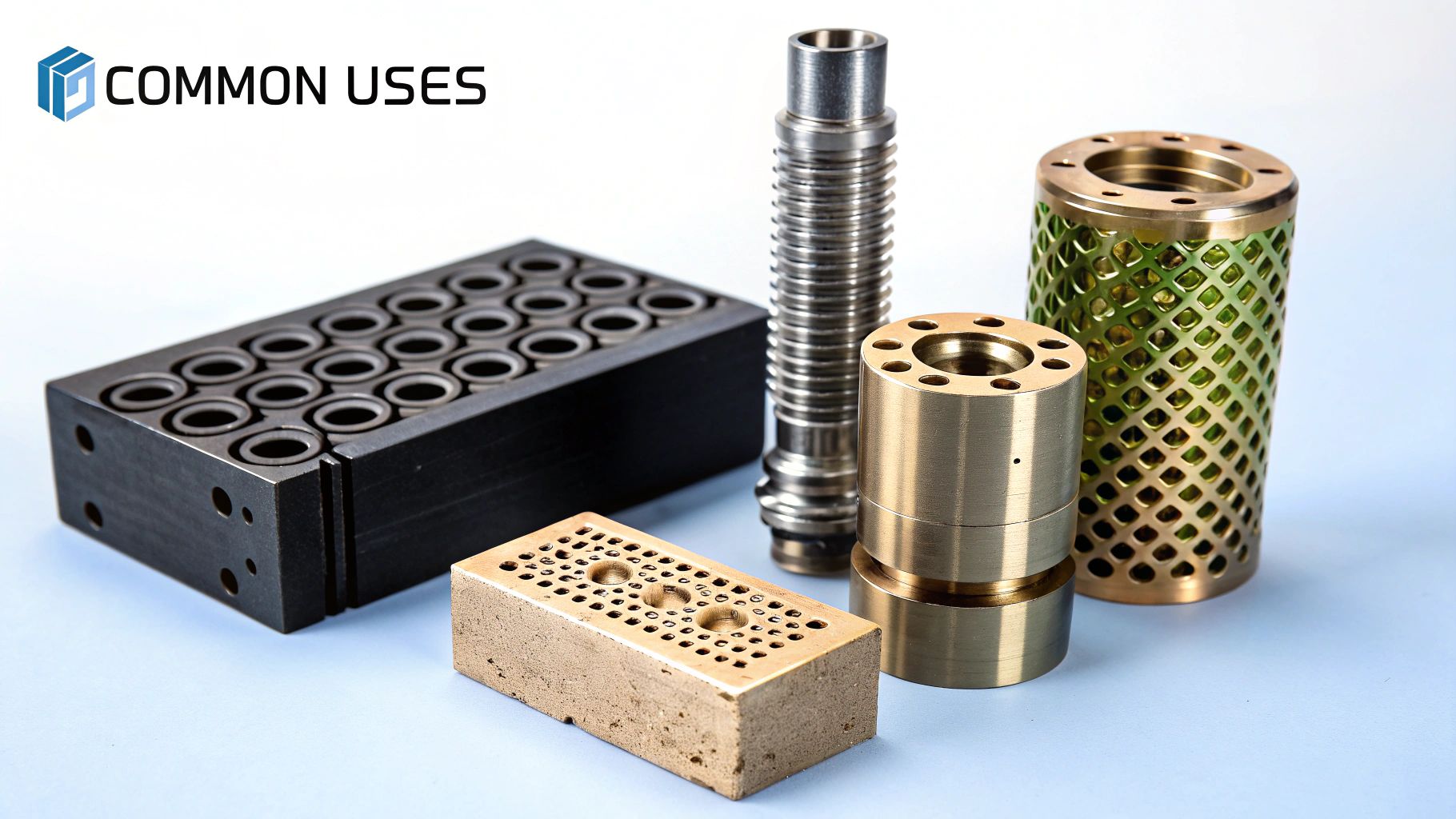

Real-World Applications That Drive Business Growth

Laser etching on metal has evolved from a niche technique to a vital tool for businesses seeking growth across diverse sectors. From the intricate details on medical devices in California to the precise logos on automotive components, the applications are both widespread and impactful.

Medical Devices: Traceability and Precision

In the medical sector, traceability is critical. Laser etching provides a way to permanently mark devices with unique identifiers, lot numbers, and other essential data. This comprehensive tracking throughout a device’s lifecycle enhances patient safety and simplifies recalls. This is especially vital for companies navigating California's stringent regulatory landscape.

Automotive: Part Identification and Brand Protection

The automotive industry relies on laser etching for part identification and brand protection. Etching part numbers directly onto components improves inventory control and streamlines assembly. Further, etching logos and branding elements combats counterfeiting and protects brand integrity.

Aerospace, Electronics, and Defense: Durability Under Pressure

In demanding sectors like aerospace, electronics, and defense, components face extreme environments. Laser etching creates permanent marks that withstand harsh temperatures, corrosive substances, and significant wear. This makes laser etching the preferred choice for marking critical parts in aircraft engines, circuits, and military gear.

Renewable Energy: Marking for the Future

The renewable energy sector is also utilizing laser etching technology. Marking solar panels, wind turbine parts, and other equipment with serial numbers and performance metrics enhances tracking, maintenance, and analysis. This ultimately optimizes efficiency and extends the operational life of these crucial technologies.

Justifying the Investment in Laser Etching

Several factors support investing in laser etching. The need for indelible marks, the demand for precision, and the desire for improved traceability and brand protection are key considerations. Moreover, laser etching enhances production processes by minimizing errors and boosting efficiency.

Regulatory Compliance and Quality Standards

Laser etching assists companies in adhering to industry regulations and quality benchmarks. In California, specific marking requirements for certain products are mandated. Laser etching offers a reliable solution to meet these standards, ensuring compliance and mitigating legal risks. The U.S. market for engraving services, encompassing laser etching, has seen significant technological advancements. The latest data suggests that this trend will likely influence the California market given its robust tech and manufacturing presence.

Emerging Applications and Future Opportunities

The future of laser etching appears promising. Emerging applications like micro-machining, surface texturing, and creating decorative finishes offer businesses innovative ways to enhance product functionality and aesthetic appeal. Staying informed about these developments allows companies to capitalize on new opportunities and maintain a competitive edge.

Dialing In Parameters For Consistent Quality Results

Achieving consistent, high-quality laser etching on metal requires a systematic approach. This involves understanding the relationship between laser power, pulse frequency, scanning speed, and focus position. By implementing proven methods, you can transform your laser etching projects from unpredictable experiments into reliable successes.

Understanding Key Laser Parameters

Think of laser parameters as the key ingredients in a recipe. Each parameter contributes significantly to the final etched product.

• Laser Power: This dictates the intensity of the laser beam. Higher power results in deeper etches, but also risks heat damage. Finding the right power level for each metal is essential.

• Pulse Frequency: This refers to the number of laser pulses emitted per second. Higher frequencies can yield a smoother etch, while lower frequencies may be more suitable for deeper engravings.

• Scanning Speed: This parameter controls how quickly the laser traverses the metal's surface. Slower speeds create deeper etches, whereas faster speeds shorten processing time. This presents a crucial trade-off between speed and quality.

• Focus Position: The laser's focal point determines the area of highest energy concentration. Precise focus is paramount for sharp, well-defined etches. Even minor deviations can significantly impact the results.

Test Pattern Strategies: Saving Time and Materials

Instead of adjusting parameters at random, implement test patterns to systematically identify the optimal settings for your materials and designs. These patterns act as small-scale experiments. Begin with low power and speed, progressively increasing each parameter while observing the effects. This method helps pinpoint the ideal balance for each variable.

Environmental Factors: More Than Just Temperature

While temperature is a factor, other environmental conditions, such as humidity and airborne particles, can also influence laser etching. High humidity, for instance, can affect how certain metals react to the laser. Maintaining a controlled environment is essential for consistent results.

Balancing Speed and Quality: Production Efficiency

In production, balancing speed and quality is paramount. Faster etching increases throughput, but may sacrifice precision or etch depth. This is where test patterns and meticulous parameter control become especially valuable, allowing you to maximize both output and product quality.

Implementing Quality Control: Repeatability Is Key

Consistent quality depends on robust quality control systems. Regularly calibrate your equipment, monitor the laser's output, and inspect finished pieces to verify they meet specifications. This is crucial for large production runs where small variations can accumulate into significant issues. Consistent monitoring guarantees repeatable results, minimizes errors, and maintains high quality standards.

Troubleshooting Common Defects

Even with careful parameter control, defects can occasionally arise. The following table provides a troubleshooting guide to address common issues:

Laser Etching Quality Troubleshooting Guide: Common etching defects, their causes, and recommended solutions

Defect Type	Typical Causes	Parameter Adjustments	Prevention Methods
Uneven Etching	Inconsistent focus, varying material thickness	Check focus, adjust power based on thickness	Regular equipment calibration, consistent material sourcing
Heat Discoloration	Excessive laser power, slow scanning speed	Reduce power, increase speed	Optimize parameters for each metal type
Over-Etching	Too much power, slow speed, too many passes	Reduce power, increase speed, reduce passes	Fine-tune parameter settings, use test patterns
Poor Contrast	Incorrect focus, inappropriate material	Adjust focus, consider different metal	Optimize parameters, proper material selection

By understanding these parameters and employing a systematic methodology, you can achieve high-quality etched pieces, regardless of the metal substrate. This results in improved outcomes, reduced waste, and increased production efficiency.

Safety That Protects Your People And Your Business

Professional laser etching on metal requires a comprehensive safety program to protect both your employees and your business. While laser etching offers significant advantages in precision and efficiency, it also presents potential hazards that must be addressed. By implementing established safety protocols, you can maintain a safe work environment without sacrificing productivity.

Understanding Laser Etching Hazards

Laser etching utilizes high-intensity light and heat, which create several key hazards:

• Beam Exposure: Direct or reflected laser beams can cause significant eye and skin damage. Even very short exposures can result in permanent vision loss.

• Fume Generation: The etching process generates potentially hazardous fumes and particulate matter as the metal vaporizes. These fumes can cause respiratory irritation and, depending on the metal being etched, present further health risks.

• Fire Hazards: The intense heat generated by the laser can ignite flammable materials if proper precautions are not followed. This risk extends not only to the metal being etched, but also to any surrounding flammable materials.

• Electrical Hazards: High-powered laser systems inherently carry significant electrical risks. Proper grounding and lockout/tagout procedures are critical for preventing electrical shocks.

• Noise Hazards: Certain laser systems produce high noise levels that can contribute to hearing loss over time.

Implementing Safety Protocols: A Multi-Layered Approach

Effective laser safety requires a comprehensive approach encompassing several crucial elements:

• Personal Protective Equipment (PPE): Operators must always wear appropriate PPE, including laser safety eyewear designed for the specific laser wavelength. Depending on the application and materials used, flame-resistant clothing, gloves, and respiratory protection might also be necessary.

• Facility Design: Designated and controlled laser etching areas are essential. Walls and enclosures should be constructed from laser-resistant materials to prevent beam reflections, and efficient ventilation systems are vital for removing fumes and particulate matter. For more information, you might want to read: Understanding Class 4 Lasers.

• Equipment Maintenance: Regular maintenance of laser etching equipment is paramount for safe operation. This should include regular inspections of safety interlocks, ensuring precise beam alignment, and verifying the proper function of fume extraction systems.

• Training and Education: Comprehensive training is mandatory for all personnel working with or around laser etching equipment. This training should cover hazard awareness, proper PPE usage, emergency procedures, and safe operating practices. Regular refresher training reinforces the importance of safety and helps keep procedures current.

Regulatory Compliance: Protecting Your Business

Adhering to relevant safety regulations is not only ethically sound but also protects your business from potential legal liabilities. These regulations can differ based on industry and location. For example, in California, Cal/OSHA regulations are especially relevant for ensuring workplace safety in laser etching operations. Staying informed about applicable standards and maintaining thorough documentation is vital for compliance.

Creating a Safety Culture: Beyond Checklists

True safety extends beyond simple checklist compliance. Building a strong safety culture empowers employees to proactively identify and address potential hazards. This involves encouraging open communication regarding safety concerns, promoting near-miss reporting, and continuously evaluating and improving safety protocols.

Risk Assessment and Emergency Procedures

Regular risk assessments are essential for identifying and mitigating potential hazards before they result in incidents. Establishing clear emergency procedures, including fire suppression and first aid protocols, ensures your team can respond effectively in an emergency.

Documentation: Protecting Your Business From Liability

Maintaining comprehensive documentation is critical for demonstrating your commitment to safety. This includes records of training, equipment maintenance logs, risk assessments, and incident reports. Accurate documentation not only supports regulatory compliance but also provides valuable data for identifying trends and improving safety measures.
